| Product name: | 400A Diesel welding unit | Engine type: | industrial enigne |
|---|---|---|---|
| Welding Current: | 400 Ampere | Cooling system: | Water cooled |
| Excitation Type: | AVR Brushless | Open voltage: | 80 V |
| Protection Class: | IP23 | Start system: | Electric start |
| Làm nổi bật: | IP23 Diesel Welder Generator,Silent Diesel Welder Generator,400Amp Diesel Welding Machine Generator |
||

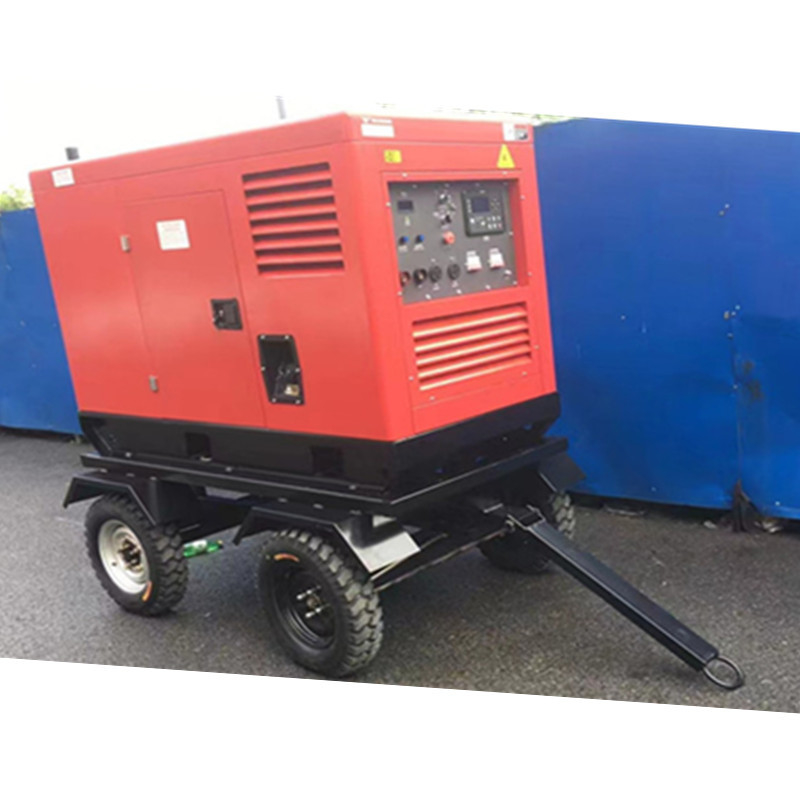

400Amp CC CV Hand welding machine silent diesel welder generator wheels mounted
The 400Amp diesel welding unit is equipped with industrial heavy duty diesel engine driven welding machines with Strong auxiliary generator and mobile trailer .
The diesel weldIing unit adopt advanced inverter soft switch technology, PWM control technology, and negative feedback control technology , enjoys excellent dynamic quality and welding performance within full voltage/current regulation range.
| Welding Current Range (A) | 60A - 400A | ||||||||
| Rated welding current | 400A | ||||||||
| Operating voltage | > 36V | ||||||||
| No–load voltage | 70V - 90V | ||||||||
| Generator output | |||||||||
| Excitation Type | AVR Brushless Excitation | ||||||||
| Frequency | 50Hz | ||||||||
| Phase | Three Phase | Single Phase | |||||||
| Output Voltage/Power | AC 380V/15Kw | AC 220V/5Kw | |||||||
| Engine | |||||||||
| Engine type | 4 stroke , 4cylinder , direct injection , heavy duty diesel engine | ||||||||
| Fuel | Diesel | ||||||||
| Engine Power | 37Kw | ||||||||
| Low Temperature | Pre-heated Start | ||||||||
| Warning Type | Water Temperature /Oil Pressure/Battery Voltage | ||||||||
| Fuel Capacity | 80L | ||||||||
| Fuel Consumption | 0.23L/kw.hr | ||||||||
| Complete appliance | |||||||||
| Weight | 900kg | ||||||||
Advantage of Genset Diesel Generator
Special structure design, perfect portability
Reliable dynamic performance
Easy installation and connection.
Low noise running within 60dBA at 7meters.
Low fuel consumption .
Compact and attractive aesthetic outlooking.
ISO and CE certificated.
