Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Product name: | 250A Diesel generator welding unit | Engine type: | Air cooling Diesel engine |
|---|---|---|---|
| Welding Current: | 20 to 250A | Cooling system: | Air cooling |
| Alternator Type: | rare earth permanent magnet | Engine RPM: | 1500rpm to 1800rpm |
| Frequency: | 50Hz or 60Hz | Protection Class: | IP23 |
| Start system: | Electric start | Warranty: | 12 months |
| Làm nổi bật: | portable welder generator,engine driven welder generator |
||

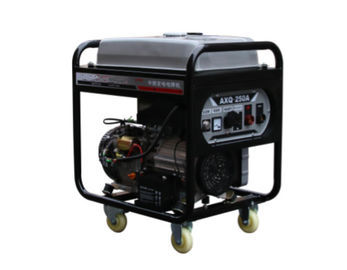

Portable 5kva 250A Diesel Welding Machine 3kw Inverter welder Electrode 1.5mm To 5mm 30V
-Adopt intermediate frequency three-phase rectifier, has the advantages of smoothcurrent, good dynamic characteristics,fast response speed (1-3ms). It can meet different welding requirements,and is suitable for all kinds of acid electrode, basic electrode and argon arc welding works.
-Adopt rare earth permanent magnet technology, has the advantages of smaller size, lighter weight, low iron loss and higher efficiency(efficiency up to 90%).
- Abandon the IGBT (insulated gate bipolar transistor) control system, substituted by adopting the "embedded" control mode, which greatly improve the reliability of the control system.
|
GENERATOR
|
Model | GNAW160 | |
| Frequency(HZ) | 50 | 60 | |
| Rated.AC voltage(V) | 230 | 240 | |
| Rated output(KVA) | 3 | 3.6 | |
| Rated speed(rpm) | 3000 | 3600 | |
|
WELDER
|
Welding no-load voltage(V) | 90V | |
| Working voltage(V) | 20-28 | ||
| Range of current(A) | 20 - 250 | ||
| Welding efficiency | 60% | ||
| Power factor (cosΦ ) | 1 | ||
| Phase | 1 | ||
|
ENGINE |
Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | |
| Bore× stroke(mm) | 92×75 | ||
| Displacement capacity(cc) | 496cc | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
