| Product name: | Miller diesel engine welder | Welding type: | Arc Mig |
|---|---|---|---|
| Welding Voltage: | 30 to 60 V | Engine RPM: | 1800rpm |
| Frequency: | 60Hz | Welding current: | 500amp |
| Làm nổi bật: | Diesel Motor Welder DC Generator Set,Arc Welding DC Generator Set,DC Generator Set With Yanmar Engine |
||

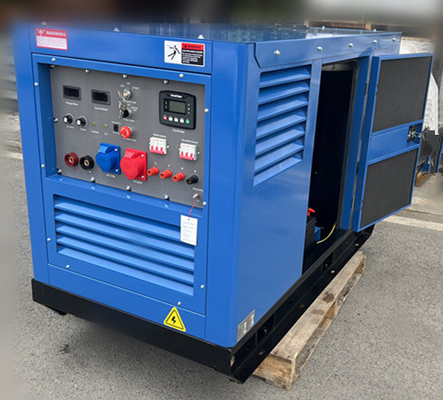

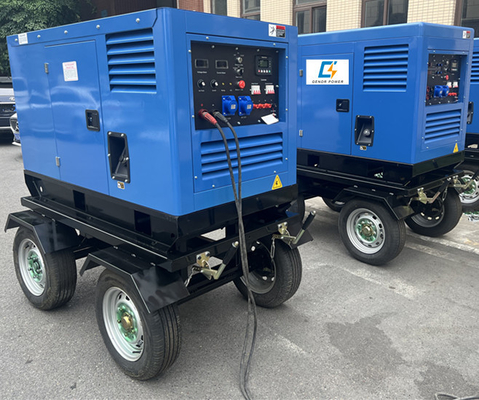

Miller big blue 500X MMA stick Mig 500Amp DC Welding Machine diesel welder generator
The diesel welding machine is equipped with heavy duty diesel engine driven welding machines with MMA/TIG/FCAW function, and Strong auxiliary power:35kw .
The diesel welder adopt advanced inverter soft switch technology, PWM control technology, and negative feedback control technology , enjoys excellent dynamic quality and welding performance within full voltage/current regulation range.
1. Electric Starter ensures easy starting
2. Separate welding range with fine adjustment in each range
3. Great Welding Performance
4. Auxiliary power while welding
5. 700 Amperes output suitable for 1.6 to 8.0 mm Air Carbon Arc Gouging and Stud Welding
6. Adopts advanced inverter soft switch technology, PWM control technology, and negative feedback control technology,enjoys excellent dynamic quality and welding performance within full voltage/current regulation range.
| Welding Processes | MMA | TIG | FCAW | ||||||
| Open Circuit Voltage (V) | 75 | 75 | 75 | ||||||
| Current Range (A) |
one-post 40-800A - two-post 20 - 400A (on each side) |
||||||||
| Duty Cycle | 100% | 80% | 60% | 100% | 80% | 60% | 100% | 80% | 60% |
| External Characteristic Curve | Drop Characteristic | Drop Characteristic | Flat Characteristic | ||||||
| Generator output | |||||||||
| Power | 35kw | ||||||||
| Excitation Type | AVR Brushless Excitation | ||||||||
| Frequency | 50Hz / 60Hz | ||||||||
| Phase | Three Phase | Single Phase | |||||||
| Output Voltage/Power | AC 400V/35Kw | AC 230V/6Kw | |||||||
| Engine | |||||||||
| Type | 6 stroke , direct injection , 4 cylinders | ||||||||
| Fuel | Diesel | ||||||||
| Rated Power | 65Kw | ||||||||
| Low Temperature | Pre-heated Start | ||||||||
| Warning Type | Water Temperature /Oil Pressure/Battery Voltage | ||||||||
| Fuel Capacity | 60L | ||||||||
| Cooling Method | Water-cooled | ||||||||
| Fuel Consumption | 5.6L/hr | ||||||||
| Complete appliance | |||||||||
