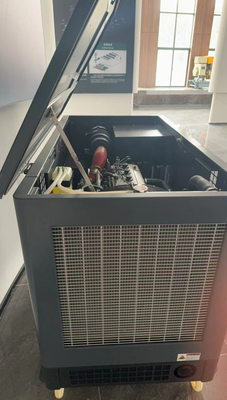

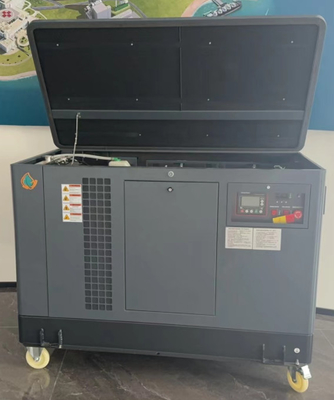

Silent Housing EPA Certificate 15kw 17kw 20kw 22kw LPG Propane Fueled Power Generator Outdoor Use

Silent housing EPA Certificate 15kw 17kw 20kw 22kw LPG propane fueled power generator outdoor use

Feature :

1.the EPA gas engine is designed and developed through thedurable engine body, the gas engine life span reaches 30 years.

2. Long designed overhaul term: 25000 ~ 30000 hours.

3. Total cogeneration efficiency is over 85%, higher than other China brands by 10%.

4. Four air valves designing for each cylinder. Sufficient air intaking and exhausting to realize maximum power output.

5. Electronic Air/Gas mixer. The mixer guarantees optimum air-fuel ratio, improves thermal efficiency, reduces NOx emission. Unique air-fuel ratio adjusting system suits 30% ~ 90% methane density.

6. Ignition system. Altronic ignition system imported from USA ensures high-precision ignition, which enhances genset life span and stability.

The natural gas generators Adopting advanced control system, the gas engine will be more reliable, and easier to start. Burn green energy with low emission and environment friendly. Several gas generators can be paralleled together , which can increase the total power range. In addition,the gensets can take maintenance in different times,which will make little influence to the normal.

Alternator Features:

1. World famous brand AC alternator

2. Brushless, 4 poles, rotation magnet

3. IP23(NEMA1) enclose is standard for all industrial alternators

4. H class insulation system

5. AVR self-regulated, voltage regulation rate: ≤±1%

6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

7. Wide range of flange adaptors and single bearing disc coupling

8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof

Digital Control panel

Controller Brand: Smartgen, Deepsea,ComAp

Control Panel: English interface,LED screen and touch buttons.

Main Functions:

1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.

2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.

3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown
