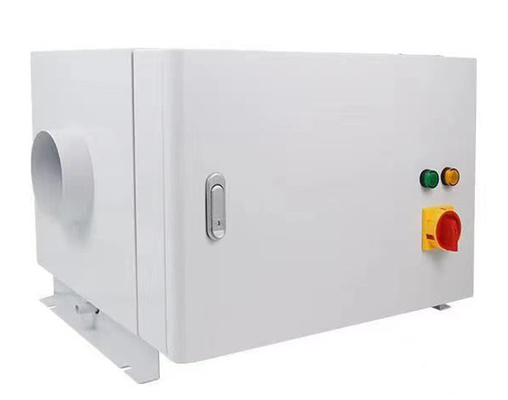

Fanuc CNC Machine Industrial Coolant Filter Air Purifier Electrostatic Oil Mist Collector

Hình ảnh lớn : Fanuc CNC Machine Industrial Coolant Filter Air Purifier Electrostatic Oil Mist Collector

Thông tin chi tiết sản phẩm:

Place of Origin:	China
Hàng hiệu:	GENOR POWER
Chứng nhận:	ISO9001:2008, CE ,CCC
Model Number:	GFHB10D

Thanh toán:

Minimum Order Quantity:	1 set
Giá bán:	USD$325 to USD$595
Packaging Details:	Wooden package / Plywood case
Delivery Time:	Within 7 days
Payment Terms:	T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability:	200/sets per Month

Tiếp xúc

Chi tiết sản phẩm

Product name:	electrostatic oil mist collector	Power:	110W
Material:	Corrosion protection shell	Voltage:	220V
Frequency:	50Hz or 60Hz	Application:	machine tools
Type:	Esp removal
Làm nổi bật:	Industrial Coolant Filter Air Purifier , Electrostatic Oil Mist Collector , CNC Machine Industrial Coolant Filter

Fanuc CNC machine Industrial coolant filter air purifier electrostatic oil mist collector

The Electrostatic oil mist collector is No consumables, long-term use, only need to periodically take out the filter for cleaning .

The oil fume mist is sucked into the electrostatic oil mist collector by the fan, and some of the larger oil mist droplets and oil dirt particles are captured on the metal wire mesh due to mechanical collision and retention. When the airflow enters the high-voltage electrostatic field, under the action of the high-voltage electric field, the oil fume gas is ionized, the oil mist is charged, and part of it is degraded and carbonized. The remaining tiny oil particles move toward the positive and negative electrodes plate of the electric field under the action of the electric field force of the adsorption electric field and the airflow. and is finally collected on the plate and flows to the oil collection pan under the action of its own gravity, and is discharged through the oil discharge channel. The remaining micron-level oil mist is degraded by the electric field into carbon dioxide and water, and is finally discharged into clean air.

Size Chart of The Electrostatic Oil Mist Collector

Model	GFHB10D	GFHB15D
Voltage	1 phase , 220V , 50Hz
Power	110W	180W
Air Volume	10-12 (m3/min)	15-18 (m3/min)
Noise(Db)	50	53
Capture efficiency	99.75%
Suction diameter(mm)	Φ150	Φ150
Dimensions(LWH)mm	780570480	805650620
