| Rated Voltage: | 120V , 220V/380V, 440V | ||
|---|---|---|---|
| Làm nổi bật: | 25kva Silent Genset Diesel Generator,250 Amp Genset Diesel Generator,Brushless AVR Diesel Backup Generator |
||

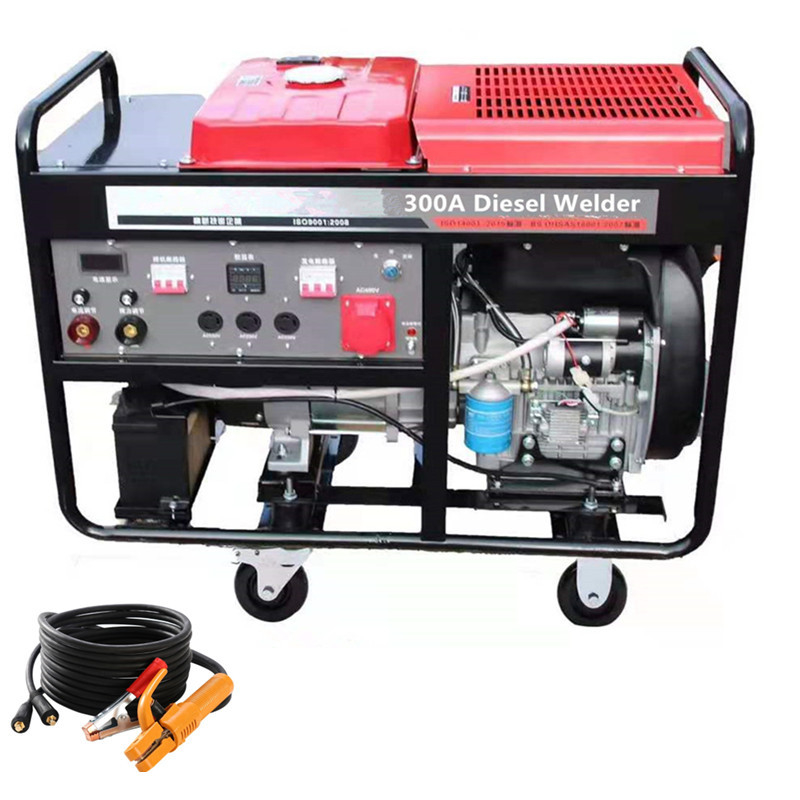

25kva weichai engine silent genset diesel generator arc welding machine 250 amp 300a 400Amps
1. MMA ,MIG ,ARC DC welderwith AC generator
2. Separate welding range with fine adjustment in each range
3. Great Welding Performance
4. Auxiliary power while welding
5. 500 Amperes output suitable for 1.6 to 8.0 mm Air Carbon Arc Gouging and Stud Welding
6. Adopts advanced inverter soft switch technology, PWM control technology, and negative feedback control technology,enjoys excellent dynamic quality and welding performance within full voltage/current regulation range.
| Model | GPW 500 diesel welding generator | ||||||||
| Welding output | |||||||||
| Welding Processes | MMA | TIG | FCAW | ||||||
| Open Circuit Voltage (V) | 75 | 75 | 75 | ||||||
| Current Range (A) | 30-500 | 30-500 | 30-500 | ||||||
| Welding Current (A) | 310 | 350 | 500 | 310 | 350 | 500 | 310 | 350 | 500 |
| Welding Voltage (V) | 32.4 | 34 | 36 | 22.4 | 24 | 26 | 29.5 | 31.5 | 33 |
| Duty Cycle | 100% | 80% | 60% | 100% | 80% | 60% | 100% | 80% | 60% |
| External Characteristic Curve | Drop Characteristic | Drop Characteristic | Flat Characteristic | ||||||
| Generator output | |||||||||
| Power | 16Kw | ||||||||
| Excitation Type | AVR Brushless Excitation | ||||||||
| Frequency | 50Hz | ||||||||
| Phase | Three Phase | Single Phase | |||||||
| Output Voltage/Power | AC 400V/16Kw | AC 230V/6.9Kw | |||||||
| Engine | |||||||||
| type | 4 stroke ,direct injection , water cooled diesel engine | ||||||||
| Fuel | Diesel | ||||||||
| Rated Power | 30Kw | ||||||||
| Rated Speed | 1500 RPM | ||||||||
| Low Temperature | Pre-heated Start | ||||||||
| Warning Type | Water Temperature /Oil Pressure/Battery Voltage | ||||||||
| Fuel Capacity | 50L | ||||||||
| Cooling Method | Water-cooled | ||||||||
| Fuel Consumption | 5.0L/hr | ||||||||
| Complete appliance | |||||||||
Control system:
1. Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current.
2. Operation display:
a) Unit voltage, tri-phase load current and frequency display
b) Water temperature, oil pressure display
c) Fuel level, fuel temperature display
d) Audible and visual alarm lamps and buzzers
