| Product name: | diesel engine driven water pump set | Engine type: | 4 stroke , direct injection diesel engine |
|---|---|---|---|
| Engine cooling: | water cooled | Pump Structure: | centrifugal pump |
| Power: | Diesel engine driven | Engine speed: | 1450-3000 RPM |
| Protection class: | IP23 | Application: | Agricultural |
| Làm nổi bật: | diesel fire pump,diesel motor pump |
||
80hp irrigation water diesel engine fire pump Base Mounted 60hp Suction Flapper 100GPM
♦ Replaceable Wear Plate
♦ Heavy Duty Suction Flapper
♦ Removable Inspection Cover allows Clean-out, Impeller, Seal and Flapper without disturbing Piping
♦ Semi-Opened Trash Handling Impeller
♦ Pressure Relief Valve
♦ O-Ring Sealed
♦ External, Shimless Impeller/Wear plate Clearance Adjustment
♦ Back Pull-out Cartridge-type Rotating Assembly for Ease of Maintenance
♦ Cartridge Type Mechanical Seal for Ease of Maintenance
Main Usage as below:
| ♦ Construction | ♦ Industrial | ♦ Municipal |
| ♦ Agricultural | ♦ Mining | ♦ Dewatering |
| ♦ Industrial Waste | ♦ Sewage | ♦ Oil Field |
| ♦ Petrochemical | ♦ Paper Mills | ♦ Processing |
The Diesel Engine water pump units are available for Solids Handling or Clear Liquid service. Typical mounting configurations areEngine Driven for Skid or Trailer Mounted packages and Frame Mounted Electric Driven. Pumps also are available in a variety of different metallurgies.
Mounting Configuration
♦ Frame Mounted
♦ Base Mounted Electric Driven
♦ Engine Driven SAE Mounted

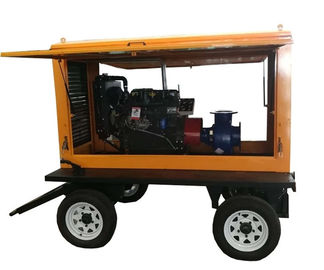

♦ Engine Driven Skid or Trailer Packages
♦ Horizontal or Vertical V-Belt Driven
| Specification: | ||
| 1.Inlet/Outlet | 2''(50mm), 3''(75mm), 4''(100mm), 6''(150mm), 8''(200mm), 10''(250mm), 12''(300mm) | |
| 2.Impeller Diameter | 158.74mm-457.2mm | |
| 3.Rotary Speed | 550RPM-3500 RPM | |
| 4.Flow Rates | 8m3/h-1275m3/h | 20GPM-5500GPM |
| 5.Head | 6m-71m | |
| 6.Horsepower | 1HP-224HP | |
| 7.N.W | 92KG-1250KG | |
| 8.G.W | 114KG-1350KG | |
| 9.Solid Passing | 20.63mm-76.2mm | |
| 10.Material | Cast Iron, ADI, CD4MCU, 316 SS, Alloy 20, C276. | |
| 11.Diesel Driving | Water cooled or Air cooled | |
| 12.Method of Connection | centrifugal pumps are available as basic units or may be flex-coupled, V-belt driven,Skid or trailer mounted. | |
| 13.Drive Variation | Cummins, Deutz, Ricardo, Perkins or Chinese engine , Electric Motor | |
| 14.Trailer Mounted | 2 or 4 wheels Trailer/Trailor,Cart | |
| 15.Package | Exporting plywood case packing | |
| 16.Certification | CE & ISO9001:2008 | |
