| Cooling system: | Sea water cooling system with heat exchanger | Start system: | Electric auto start |
|---|---|---|---|
| Làm nổi bật: | compact marine generator,marine diesel genset |
||

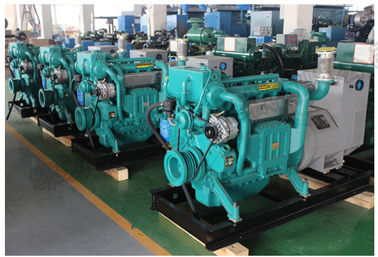

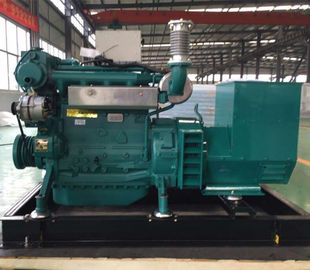

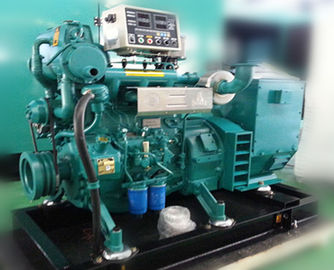

60hz 440V 20kva marine diesel generator 30kva weichai For Floating Barge CCS class approval
Engine Features:
1. Genuine Weichai Marine diesel engine
2. 6-cylinder in-line or veer engine, 4-stroke, direct injection
3. Sea water cooled with heat exchanger
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
The 30kva marine diesel generator is equipped with Weichai-Deutz engine and reliable brushless alternator .
The Marine Diesel Generator is widely used in inland and coastal waters, offshore market carriers, fishing boats, yatch,Ferry boat ,ships and other projects.
|
Marine Diesel Generator Set
|
Weichai Deutz 226B Series Diesel Engine | ||||
| (400/230V/120C, 50Hz/60Hz, 3 P 4W) | (Electrical Starting, Dual-circulate water-cool) | ||||
| Genset Model |
Rated
|
Engine Model | Max* output |
Rated Speed |
Governing Method |
| (KW) | Deutz | (KW) | (rpm) | ||
| GNRDM-12 | 12 | D226B-3C | 22 | 1500 | Mechanical |
| GNRDM-16 | 16 | D226B-3C | 22 | 1500 | Mechanical |
| GNRDM-20 | 20 | D226B-3CD | 30 | 1500 | Mechanical |
| GNRDM-24 | 24 | D226B-3CD | 33 | 1500 | Mechanical |
| GNRDM-30 | 30 | TD226B-3CD | 44 | 1500 | Mechanical |
| GNRDM-40 | 40 | TD226B-4CD | 66 | 1500 | Mechanical |
| GNRDM-50 | 50 | TD226B-4CD | 66 | 1500 | Mechanical |
| GNRDM-64 | 64 | TD226B-6CD | 99 | 1500 | Mechanical |
| GNRDM-75 | 75 | TD226B-6CD | 99 | 1500 | Mechanical |
| GNRDM-90 | 90 | TBD226B-6CD | 132 | 1500 | Mechanical |
| GNRDM-100 | 100 | TBD226B-6CD | 132 | 1500 | Mechanical |
| GNRDM-120 | 120 | TBD226B-6CD5 | 145 | 1500 | Electrical |
Protective function of operation
1) Low oil pressure alarm and shutdown
2) High temperature alarm and shutdown
3) Over speed alarm and shutdown
Standard Configure of marine diesel generator:
|
1) High Performance Marine Engine
|
6) MCCB, Muffler, Air filter |
|
2) Brushless ,AVR self-regulated Alternator (IP23)
|
7) 2*12V Heavy duty start batteries |
|
3) Steel base frame with shock absorber
|
8) Battery cable & Atteched accessories |
|
4) Standard control box
|
9) Manual books and parts books |
| 5) Sea water cooling heat exchanger |
10) Optional digital monitor
|
