| Cooling system: | Sea water cooling with heat exchanger | ||
|---|---|---|---|
| Làm nổi bật: | marine diesel genset,marine generator set |
||

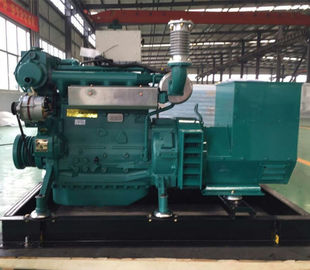

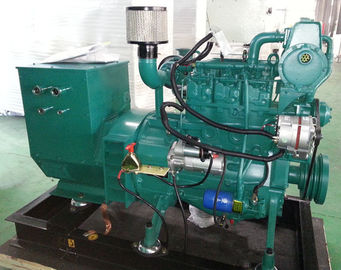

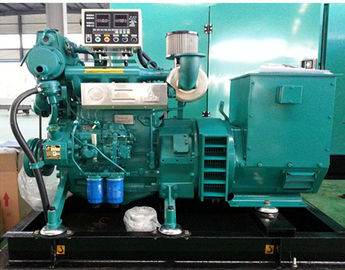

20kw Silent marine diesel generator 10kw for boat with sea water pump class approval certificate
1.Reliable dynamic performance
2.Compact structure
3.Long life
4.Low fuel consumption
5.Low noise
6.Low emissions
7.Adaptability to environmental change
8.Ability to work under the harshest conditions
Standard Configure of marine diesel generator:
|
1) High Performance Marine Engine
|
6) MCCB, Muffler, Air filter |
|
2) Brushless ,AVR self-regulated Alternator (IP23)
|
7) 2*12V Heavy duty start batteries |
|
3) Steel base frame with shock absorber
|
8) Battery cable & Atteched accessories |
|
4) Standard control box
|
9) Manual books and parts books |
| 5) Sea water cooling heat exchanger |
10) Optional digital monitor
|
The Marine Diesel Generator is widely used in inland and coastal waters, offshore market carriers,
fishing boats,
yatch,Ferry boat ,ships and other projects.
|
Marine Diesel Generator Set
|
Weichai Deutz 226B Series Diesel Engine | ||||
| (400/230V/120C, 50Hz/60Hz, 3 P 4W) | (Electrical Starting, Dual-circulate water-cool) | ||||
| Genset Model |
Rated
|
Engine Model | Max* output |
Rated Speed |
Governing Method |
| (KW) | Deutz | (KW) | (rpm) | ||
| GNRDM-12 | 12 | D226B-3C | 22 | 1500 | Mechanical |
| GNRDM-16 | 16 | D226B-3C | 22 | 1500 | Mechanical |
| GNRDM-20 | 20 | D226B-3CD | 30 | 1500 | Mechanical |
| GNRDM-24 | 24 | D226B-3CD | 33 | 1500 | Mechanical |
| GNRDM-30 | 30 | TD226B-3CD | 44 | 1500 | Mechanical |
| GNRDM-40 | 40 | TD226B-4CD | 66 | 1500 | Mechanical |
| GNRDM-50 | 50 | TD226B-4CD | 66 | 1500 | Mechanical |
| GNRDM-64 | 64 | TD226B-6CD | 99 | 1500 | Mechanical |
| GNRDM-75 | 75 | TD226B-6CD | 99 | 1500 | Mechanical |
| GNRDM-90 | 90 | TBD226B-6CD | 132 | 1500 | Mechanical |
| GNRDM-100 | 100 | TBD226B-6CD | 132 | 1500 | Mechanical |
| GNRDM-120 | 120 | TBD226B-6CD5 | 145 | 1500 | Electrical |
Protective function of operation
1) Low oil pressure alarm and shutdown
2) High temperature alarm and shutdown
3) Over speed alarm and shutdown
