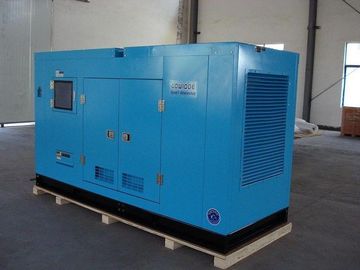

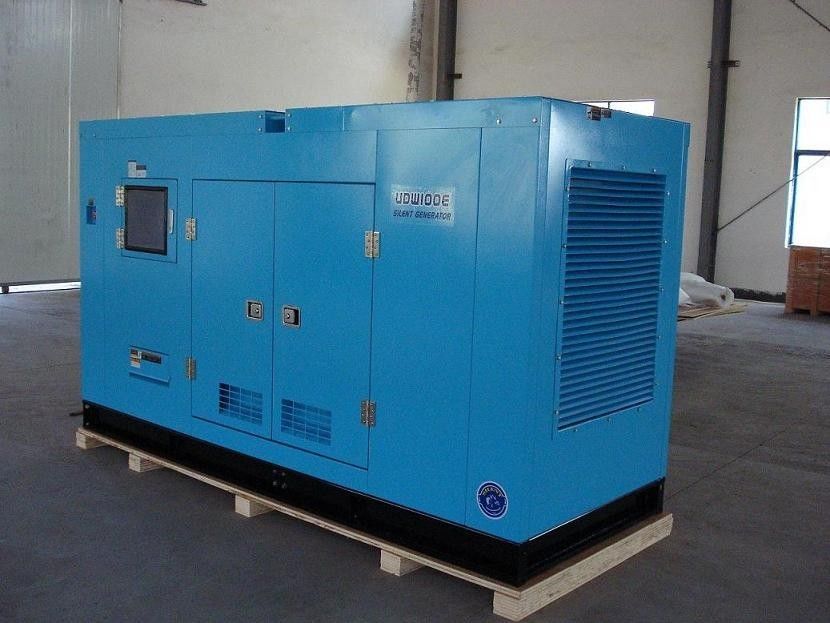

24kw 50Hz Silent Diesel Generator , 30kva Perkins Generator With Atuomatic Controller
Quick Detail:
1.Pekrins Diesel Engine:1103A-33g
2.Stamford AC Brushless Alternator:PI144G
3.Smartgen atuomatic start/stop controller
4.10 hours fuel oil tank
Specifications:
|
Technical Data |
||
|
Genset Model |
GNRP30 |
|
|
Prime Power |
30KVA/24KW |
|
|
Standby Power |
33KVA/26KW |
|
|
Rated Voltage |
400/230V |
|
|
Frequency |
50Hz |
|
|
Radiator |
50°C max with coolant cap |
|
|
Charge Alternator |
12V |
|
|
Dimension(L*W*H) (mm) |
1650×770×1254 |
|
|
Net Weight (kg) |
822 |
|
|
Diesel Engine |
||
|
Brand |
Perkins |
|
|
Model |
1103A-33G |
|
|
Governor Type |
Mechanical |
|
|
Rotating Speed |
1500 rpm |
|
|
Engine Cooling Method |
Water-cooled |
|
|
Displacement(L) |
3.3 L |
|
|
Bore×Stroke(mm) |
105 ×127 |
|
|
Alternator |
||
|
Brand |
STAMFORD |
|
|
Model |
PI144G |
|
|
Power Factor(COS Phi) |
0.8 |
|
|
Excite Type |
Brushless SHUNT |
|
|
Connecting Type |
3 Phase & 4 Wires |
|
|
Insulation Degree |
H/H |
|
|
Enclosure Degree |
IP23 |
|
|
The components of the genset : 1.Diesel Engine 2.Alternator 3.Control Panel |
||
Digital Control panel
Controller Brand: Smartgen, Deepsea,ComAp
Control Panel: English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown
Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6. 1m<80DBA / 7m<70DBA
Optional:
1. Trailer type
2. Soundproof / water proof
3. ATS (automatic transfer switch)
4. Parallel system
5. Remote system
PMC System:
1. Standard 23 pitch windings avoid excessive neutral current
2. Permanent magnet generator system provides constant excitation under all condition
3. Optional accessories available for easy paralleling with mains or other generators
4. AVR auto voltage regulation, auto exciter, auto adjustment
