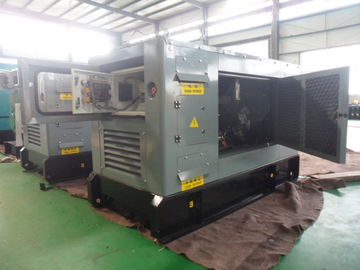

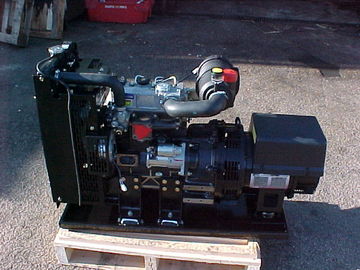

3 phase 50Hz perkins engine diesel generator set 10kv
| perkins diesel generator set | ||
| GEN-SETS | Model | GNRP8 |
| Engine Brand | UK Perkins | |
| Rated Output(kva) | 8 | |
| Current(A) | 14.4 | |
| Power factor(cosφ) | 0.8 | |
| Frequency(hz) | 50/60 | |
| Fuel Consumption(g/kw.h) | ≤252 | |
| The regulating rate of instantaneous voltage | ≤-10%/ +15% | |
| The time of steady voltage | ≤1.5sec | |
| The waving rate of voltage | ≤0.5% | |
| The regulating rate of steady frequency | ≤3% | |
| The regulating rate of instantaneous frequency | ≤±5% | |
| The time of steady frequency | 3sec | |
| The waving rate of frequency | ≤0.25% | |
| Dim L×W×H(mm) | 1200X700X1100 | |
| Weight(kg) | 300 | |
| Diesel engine | Engine model | 403D-11G |
| Cylinder | 3 | |
| Bore*Stroke(mm) | 77*81 | |
| Lubricating oil capacity | 4.9 | |
| Rated speed(rpm) | 1500/1800 | |
| Cooling method | Closed water cooling | |
| Starting system | Electrical start | |
| Displacement(L) | 1.13 | |
| Alternator | Brand | Stamford/Marathon/Engga |
| Type | Brushiess | |
| The connecting way of the phase | Three phases four lines | |
| Insulation degree | H degree | |
| Grading Protection | IP23 | |
Control system:
a) Automatic alarm system: the unit has the acousto-optics alarm system and
arrestor for any situation as the start defeat, the water is over temperature, the oil
pulls down, over speed, over load and over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible and visual alarm lamps and buzzers
