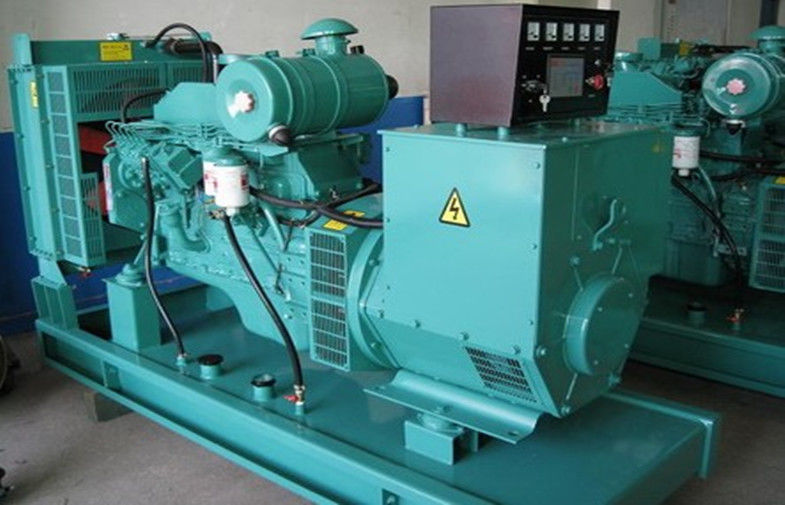

Cummins 50 kw Generator With Stamford Alternator
1. Cummins 6BT5.9-G2 Water – cooled
2. UCI244G (Stamford) IP23 ,single bearing
3. Controller Brand: Deep Sea / Smartgen (Digital and intelligent)
IP23 Single Bearing Cummins Diesel Generator With Stamford Alternator
Specifications:
|
generator Model |
GNRC50 |
|
generator Power |
50kw |
|
generator Brand |
USA Brand |
|
Powered by US Cummins Engine |
|
|
Prime Power (50HZ) |
50kw/62.5kva |
|
Standby Power (50HZ) |
92kw/115KVA |
|
Power Factor |
0.8 (Lagging) |
|
Phase Wires |
3-phases 4-Wires |
|
Start Model |
Electric |
|
Protection |
Low oil-pressure, High water temperature, Over-speed, Over-current |
|
Engine Model |
Cummins 6BT5.9-G2 |
|
Cylinders |
6 |
|
Cylinder Arrangement |
L |
|
Bore x Stroke(mm) |
102X 120 |
|
Compression Ratio |
17.5:1 |
|
Speed |
1500rpm |
|
Cooling Method |
Water – cooled |
|
Starting Method |
24V DC electrical start |
|
Full Load Diesel Consumption (L/H) |
22 |
|
Engine Displacement (L) |
5.9 |
|
Inspiration (L) |
Natural |
|
Lube Volume (L) |
14.3 |
|
Coolant Volume (L) |
25 |
|
Noise (Db) |
≤ 80 |
|
Alternator Model |
UCI244G (Stamford) |
|
Alternator Power |
80KW/100KVA |
|
Voltage |
230/400 V |
|
Protection |
IP23 |
|
Voltage Regulation |
±4% |
|
Insulation Class |
H |
|
Voltage Control |
AVR |
|
Net Weigh (KGS) |
1400 |
|
Dimensions (L x W x H) mm |
2900*1230*1700 |
|
Digital control panel |
Smartgen |
|
Regulation systerm |
Electric regulation systerm |
|
Optional |
ATS (auto transfer switch) |
|
|
AMF |
|
|
Auto Battery Charger |
|
|
Base Fuel Tank (for open type) |
control plane
Controller Brand: Deep Sea / Smartgen (Digital and intelligent)
LED Screen and touch Buttons’
Main Functions,
1- Display loading power, voltages, currencies, frequency, speed, temperatures, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Shut down when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc
Warranty policy
Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.
