16ft HVLS Large warehouse air ventilation Industrial Ceiling Fan Cooling 220V 60Hz power

Tôi trò chuyện trực tuyến bây giờ

16ft HVLS Large warehouse air ventilation Industrial Ceiling Fan Cooling 220V 60Hz power

16ft HVLS Large warehouse air ventilation Industrial Ceiling Fan Cooling 220V 60Hz power

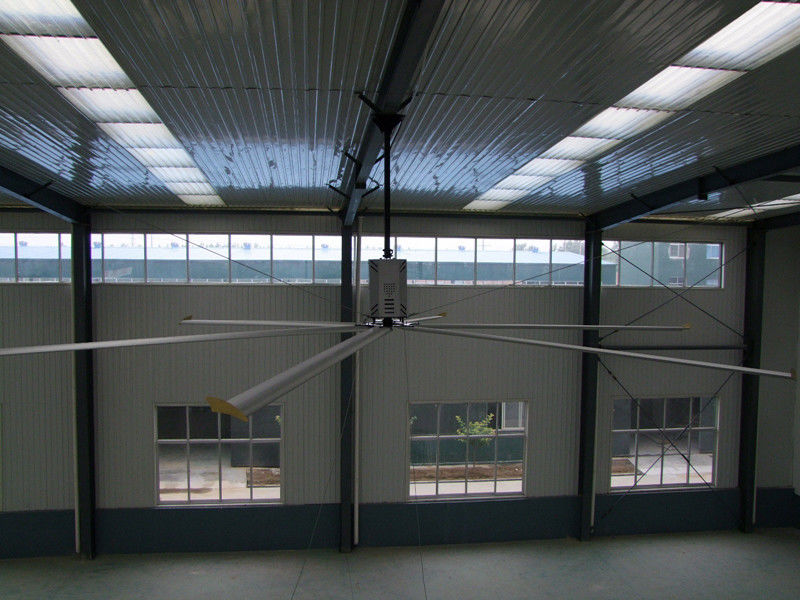

Hình ảnh lớn :  16ft HVLS Large warehouse air ventilation Industrial Ceiling Fan Cooling 220V 60Hz power

Thông tin chi tiết sản phẩm:
Place of Origin: China
Hàng hiệu: Genor
Chứng nhận: CSA,CE,CCC
Model Number: GFAN
product name: Big air ceiling fan
Electric power: 1500w
Motor brand: NORD
amount of the blade: 6
Blade Material: Aluminium alloy
Thanh toán:
Minimum Order Quantity: 1 set
Giá bán: negotiable
Packaging Details: wooden pacakge
Delivery Time: Within 10 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 200 units / month
Chi tiết sản phẩm
Làm nổi bật:

industrial hvsl fans

,

industrial style ceiling fans

16ft HVLS Large warehouse air ventilation Industrial Ceiling Fan Cooling 220V 60Hz power





The big ceiling fan is a new solution of Energy Saving to solve ventilation,
cooling and dehumidification in large indoor place.

It is High Air Volume and Low Rotating Speed

our HVLS super ceiling fan runs at low speed to slowly move a lot of air in large area through unique fan blades

Our HVLS Ceiling fan only have 6 blades.

From the center along the blades, blade's width and thickness gradually are narrowed and thin, in accordance with the modern aerodynamical science, the whole blades drive more and even airflow downward, no empty zone in center area.





Model Diameter Max Speed Covering Spacing Air Volume (CFM) Moter Power Weight
GFAN25 2500mm (8 FT) 129rpm 200m2 40000 1.1kw 70kg
GFAN31 3100mm (10FT) 114rpm 350m2 74000 75kw
GFAN33 3700mm (12FT) 95rpm 500m2 102000 85kg
GFAN43 4300mm (14FT) 83rpm 600m2 114000 110kg
GFAN49 4900mm (16FT) 75rpm 900m2 193000 1.5kw 120kg
GFAN61 6100mm (20FT) 67rpm 1200m2 292000 125kg
GFAN73 7300mm (24FT) 53rpm 1500m2 363000 130kg






Advantages



1)High efficient air flow



2)Strengthen the air cycle effectively



3)Low cost and free maintenance



4)Provide cool air flow in summer and hot air cycle in winter



5)Large application area



6)Propeller blades guarantee safety





Environmental Protection



1)Very low enery consumption



2)Provide natural ventilation and lower the temperature effectively



3)Refresh the air continuosly



16ft HVLS Large warehouse air ventilation Industrial Ceiling Fan Cooling 220V 60Hz power 0
