Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Engine brand: | Ricardo diesel engine | Alternator: | Chiina Stamford,LeroySomer, Marathon |
|---|---|---|---|
| Starting method: | Electric Start | Cooling System: | Water cooled |
| Frequency: | 50Hz or 60Hz | Voltage: | 120V ,220V/380V, 240V/415V |
| Protection class: | IP23 | Output power: | 250kva |
| Warranty: | 12 months | ||
| Làm nổi bật: | diesel generator sets,soundproof diesel generator |
||

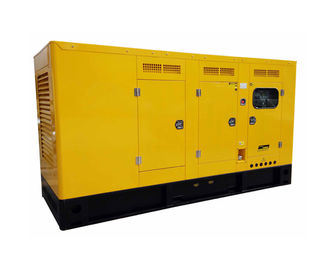

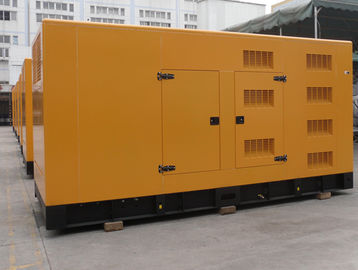

China heavy duty power 200kw genset Ricardo Engine 250 kva silent diesel generator
Main specification
a,3-Phase, 50Hz / 60Hz , 120V, 220V / 380V (Also Can Be Made According To Customers’ Special Requirements)
b,12V/24V DC start motor and storage battery
c,Brushless, Self-excited, IP21-23, insulation class H alternator
d, 40°C radiator as standard, 50°C is optional
e,Key start panel control system as standard, digital auto-start panel is optional
f,All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load, 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
Data of diesel Generator Set
| Prime Power | 250kva | Standby Power | 275kva |
| Rated Speed | 1500rpm | Output Frequency | 50hz/60hz |
| Phase | 3 | Rated Voltage | 400v |
| Fuel Consumption | 23L | Fuel Tank capacity | 10 hours |
| Voltage Regulation Rate | ≤±1% | Random Voltage Rate | ≤±1% |
| Frequency Regulation Rate | ≤±5% | Random Frequency Variation | ≤±0.5% |
Alternator Specification
| Alternator Brand | China Stamford,Mecc-alte,Marathon |
| Exciter Type | Brushless, Self-excited |
| Rated Speed | 1500/1800rpm |
| Rated Frequency | 50/60hz |
| Phase | three or single |
| Rated Voltage | 400V (Available with customer requirements) |
| Power | 0.8 |
| Voltage Adjust Range | ≥5% |
| Protection Grade | IP22 |
| Insulation Grade | H |
Digital Control Panel
Controller Brand: Smartgen, Deepsea,ComAp
Control Panel: English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown
